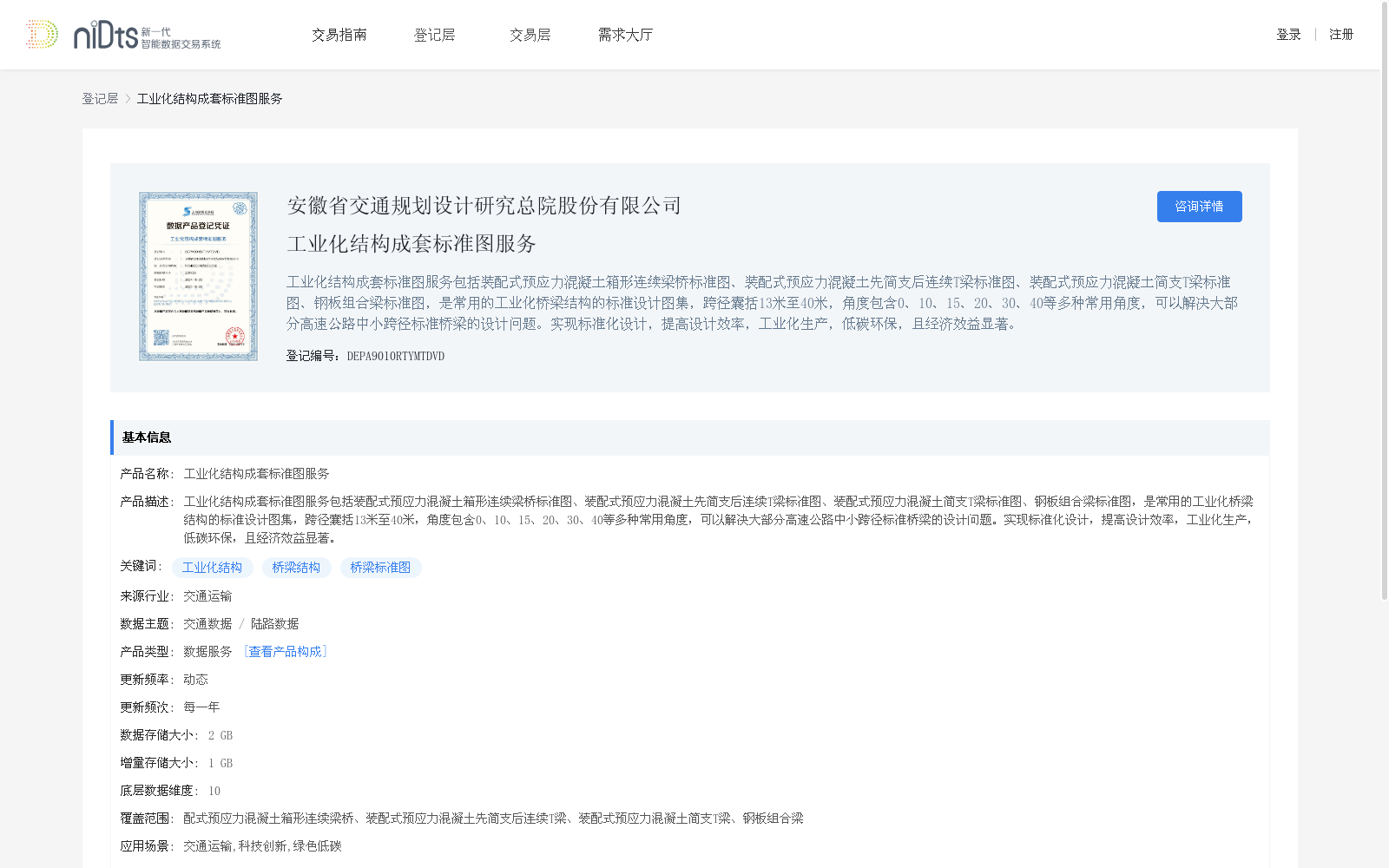

工业化结构成套标准图服务

工业化结构成套标准图服务包括装配式预应力混凝土箱形连续梁桥标准图、装配式预应力混凝土先简支后连续T梁标准图、装配式预应力混凝土简支T梁标准图、钢板组合梁标准图，是常用的工业化桥梁结构的标准设计图集，跨径囊括13米至40米，角度包含0、10、15、20、30、40等多种常用角度，可以解决大部分高速公路中小跨径标准桥梁的设计问题。实现标准化设计，提高设计效率，工业化生产，低碳环保，且经济效益显著。

The complete set of standardized drawing services for industrialized bridge structures includes standard drawings for prefabricated prestressed concrete box continuous girder bridges, prefabricated prestressed concrete simply-supported to continuous T-beams, prefabricated prestressed concrete simply-supported T-beams, and steel plate composite girders. These are standard design atlases for commonly used industrialized bridge structures, covering span ranges from 13 meters to 40 meters and various commonly used angles such as 0°, 10°, 15°, 20°, 30°, 40°. They can solve the design problems of most medium and small-span standard bridges on expressways. The services enable standardized design, improve design efficiency, support industrialized production, are low-carbon and environmentally friendly, and deliver remarkable economic benefits.

搜集汇总

背景与挑战

背景概述

该数据集提供工业化桥梁结构的标准设计图集，包括装配式预应力混凝土箱形连续梁桥、T梁标准图等，覆盖13米至40米跨径及多种角度，适用于高速公路中小跨径桥梁设计，具有标准化设计、提高效率、低碳环保等特点。
