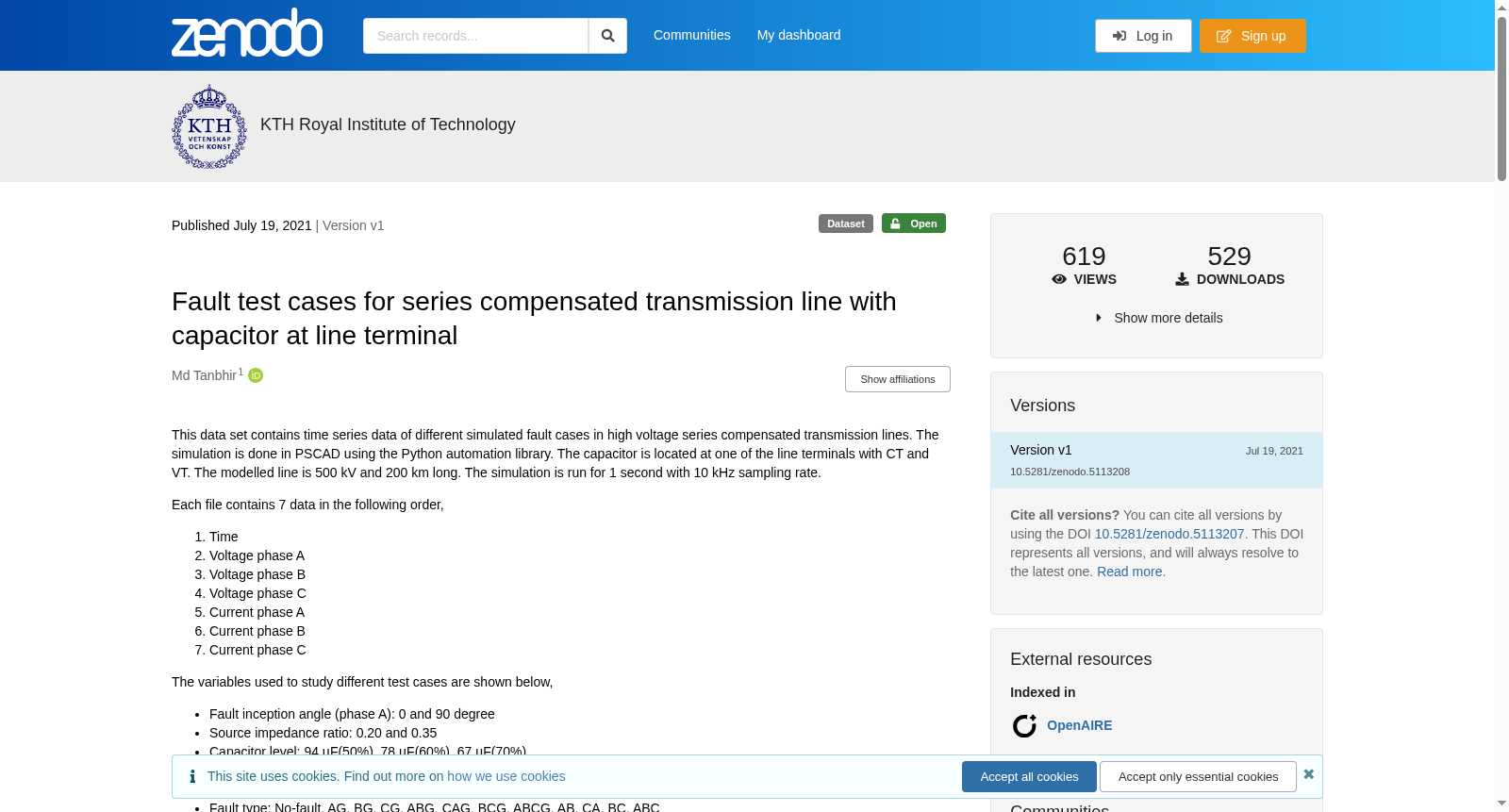

Fault test cases for series compensated transmission line with capacitor at line terminal

This data set contains time series data of different simulated fault cases in high voltage series compensated transmission lines. The simulation is done in PSCAD using the Python automation library. The capacitor is located at one of the line terminals with CT and VT. The modelled line is 500 kV and 200 km long. The simulation is run for 1 second with 10 kHz sampling rate. Each file contains 7 data in the following order, Time Voltage phase A Voltage phase B Voltage phase C Current phase A Current phase B Current phase C The variables used to study different test cases are shown below, Fault inception angle (phase A): 0 and 90 degree Source impedance ratio: 0.20 and 0.35 Capacitor level: 94 µF(50%), 78 µF(60%), 67 µF(70%) Fault resistance: 0.10, 10, 20, 30 ohm Fault location: 10 km reverse, 10 km, 50 km, 100 km, 125 km, 150 km, 155 km, 160 km. 165 km, 170 km, 180 km, 190 km Fault type: No-fault, AG, BG, CG, ABG, CAG, BCG, ABCG, AB, CA, BC, ABC All these factors lead to 6912 test cases in total. The test cases are organized in four (4) zipped folders each containing 1728 test cases. The PSCAD model file and an example python script that can be used to automate the simulations are also included herewith for anyone interested to replicate the results. The name of the folder contains the information regarding fault inception angle and source impedance ratio for all test cases inside that folder, for example, the folder name Outputs_0_0.20 can be decoded as, 0: Fault inception angle (phase A) 0.20: Source impedance ration The files names inside the folders include information about the other variables used in generating the test case. For example, the name test_f_10_0_67_0.01 can be interpreted as, test_f: f for forward fault, r for reverse fault 10: fault location, 10 km 0: Fault type 67: Compensation level 0.01: Fault resistance Fault types are interpreted as in PSCAD. 0 = No-Fault, 1 = Phase A to Ground 2 = Phase B to Ground 3 = Phase C to Ground 4 = Phase AB to Ground 5 = Phase AC to Ground 6 = Phase BC to Ground 7 = Phase ABC to Ground 8 = Phase AB 9 = Phase AC 10 = Phase BC 11 = Phase ABC The different line parameters used in the PSCAD model is as below, Conductor Type: Chukar Geometric mean radius: 20.345 mm DC resistance: 0.0318Ω/km Strands: 84 Strand radius: 1.8491 mm Relative permeability: 1.0 Sag: 12 m Height: 22 m Sub-conductor: 2 Sub-conductor spacing: 0.4572 m Ground wire number: 2 Radius: 5.5245 mm DC resistance: 2.8645Ω/km Relative permeability: 1.0 Sag: 10 m Height: 10 m Impedance Positive sequence0.018 +j0.339 Ω/km Zero sequence0.266 +j1.017 Ω/km These simulations were run for assessing time-domain protections. Therefore, the parallel CB protection across the series capacitor is disabled, as one can safely assume even with the highest current levels, the CB will take at least 20 ms to operate. This is higher than the time limits for time-domain protection.

搜集汇总

背景与挑战

背景概述

该数据集是一个高压串联补偿输电线路故障测试案例集合，包含6912个模拟故障案例的时间序列数据，基于500 kV、200 km长的线路模型，采样率为10 kHz。数据涵盖了多种故障参数，如故障起始角、源阻抗比、电容水平和故障类型，旨在用于评估时域保护，并提供了PSCAD模型和Python脚本以支持复现和自动化仿真。
