EllipBench

EllipBench是由香港理工大学等机构创建的一个大规模薄膜光学性质数据集，涵盖98种薄膜材料和4种基底材料。该数据集包含超过800万条数据点，涉及不同材料类型、基底材料和光学参数。数据集的创建过程包括通过椭偏测量法测量薄膜的光学常数和厚度，并使用正向模型计算相应的椭偏参数。EllipBench旨在解决椭偏测量中的逆问题，特别是在薄膜厚度和光学常数预测方面，为机器学习方法提供了一个全面的测试平台。

EllipBench is a large-scale thin film optical property dataset developed by institutions including the Hong Kong Polytechnic University and others. It covers 98 types of thin film materials and 4 types of substrate materials, and contains over 8 million data points involving diverse material categories, substrate materials and optical parameters. The dataset was constructed by measuring the optical constants and thickness of thin films via ellipsometry, and calculating the corresponding ellipsometric parameters using forward models. EllipBench aims to solve the inverse problem in ellipsometry, particularly for the prediction of thin film thickness and optical constants, providing a comprehensive testbed for machine learning methods.

搜集汇总

数据集介绍

构建方式

EllipBench数据集的构建旨在解决椭偏测量中的逆问题，该问题通常需要复杂的数据拟合技术，并且耗时。该数据集的构建过程包括从98种不同类型的薄膜材料和4种基板材料中收集椭偏参数和薄膜的光学常数。这些材料包括金属、合金、化合物和聚合物等。收集到的数据首先输入到一个正向模型中，以计算相应的椭偏参数，从而形成数据集。光学常数和薄膜厚度的数据来自于过去使用椭偏测量技术进行的多次实验。

特点

EllipBench数据集的主要特点是规模庞大，包含超过800万个数据点，涵盖了98种薄膜材料和4种基板材料。数据集的多样性得到了保证，因为它捕获了相同材料在不同波长下的光学常数的变异性。此外，数据集还包括不同薄膜厚度下的椭偏参数，范围从1纳米到96纳米，跨越20个不同的厚度级别。数据集被划分为训练集、验证集和测试集，比例为8:1:1，以确保模型能够广泛学习每个材料组合的数据映射关系。

使用方法

EllipBench数据集适用于测试和评估基于机器学习的椭偏分析模型。研究人员可以使用该数据集来训练他们的机器学习模型，以预测薄膜的光学常数和厚度。数据集的规模和多样性使其成为一个宝贵的资源，可以帮助模型学习更全面的信息，并提高其在椭偏分析中的应用能力。此外，该数据集还可以用于比较和评估不同机器学习方法的性能，以确定哪种方法在椭偏测量中最为有效。

背景与挑战

背景概述

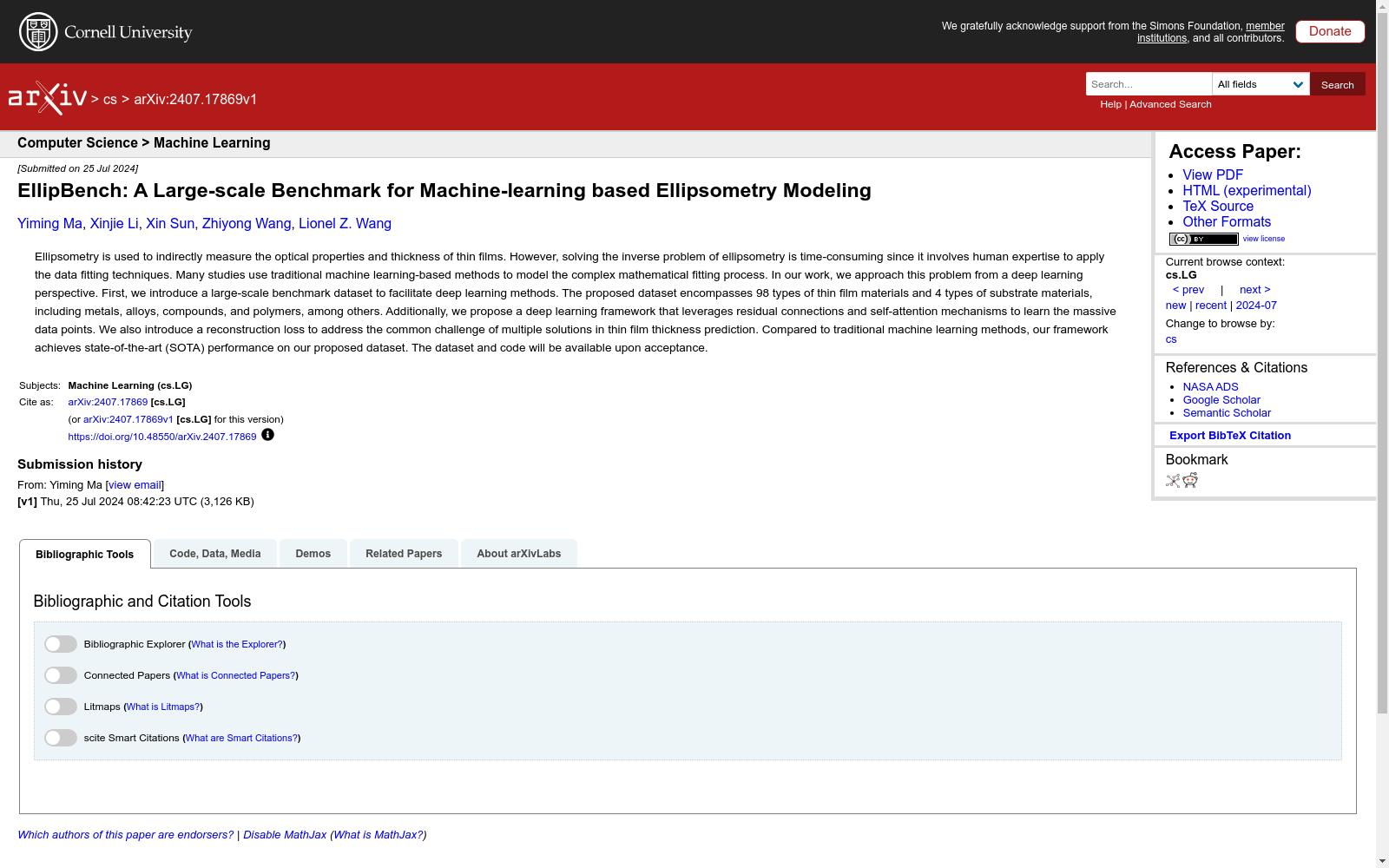

Ellipsometry, a technique used to indirectly measure the optical properties and thickness of thin films, has been traditionally limited by its time-consuming and labor-intensive data fitting process. This has necessitated the involvement of human expertise, making ellipsometry analysis a bottleneck in various industries such as optoelectronics, microelectronics, energy, and aerospace. Recognizing these limitations, researchers Yiming Ma, Xinjie Li, Xin Sun, Zhiyong Wang, and Lionel Z. WANG from the Hong Kong Polytechnic University, Pennsylvania State University, and Tianjin University, introduced EllipBench, a large-scale benchmark dataset for machine-learning based ellipsometry modeling. The dataset, encompassing 98 types of thin film materials and 4 types of substrate materials, was designed to facilitate deep learning methods in solving the inverse problem of ellipsometry. The proposed deep learning framework, leveraging residual connections and self-attention mechanisms, achieved state-of-the-art performance on the dataset, addressing the challenges of traditional ellipsometry methods. The dataset and code are available for other researchers to test their machine learning methods, contributing significantly to the field of ellipsometry.

当前挑战

The main challenge addressed by EllipBench is the inverse ellipsometry problem, which lacks an exact analytical solution and relies on complex data analysis and fitting techniques. This process is highly time-consuming and labor-intensive, requiring considerable expertise from the operator. Additionally, ellipsometry measurements are susceptible to interference from environmental factors such as temperature and humidity, leading to uncertainty in the results. The proposed deep learning framework and dataset aim to simplify the ellipsometry process, reducing the need for extensive human expertise and time. However, one of the key challenges in this approach is the one-to-many mapping relationship in the dataset, where different thin films may have the same thickness, making it challenging to achieve high thickness prediction accuracy. To address this, the researchers introduced a novel reconstruction loss function to guide the network's parameter updates, enabling the neural network to learn the inverse mapping from ellipsometric parameters to optical constants and thin film thickness. Despite the significant advancements made by EllipBench, there is still room for improvement, particularly in terms of prediction accuracy at higher precision levels, especially for non-metallic materials.

常用场景

经典使用场景

EllipBench数据集在机器学习领域，尤其是在解决椭偏光谱学建模问题方面，具有广泛的应用。该数据集涵盖了98种薄膜材料和4种基底材料，共包含超过800万个数据点，为研究者提供了一个丰富的资源，用以测试和评估他们的机器学习模型。此外，EllipBench数据集的构建过程、统计信息和与现有数据集的比较，为椭偏光谱学分析领域的研究提供了重要的参考和启示。

解决学术问题

EllipBench数据集解决了椭偏光谱学建模中的经典问题，即椭偏光谱学测量的逆问题。传统的椭偏光谱学测量方法只能提供间接的光学参数和薄膜厚度之间的关系，而无法直接计算出薄膜的光学常数和厚度。EllipBench数据集通过引入深度学习框架，实现了从椭偏参数到光学常数和薄膜厚度的逆映射，有效地解决了这个问题。此外，EllipBench数据集还设计了一种新颖的重构损失函数，以解决薄膜厚度预测中存在的一对多映射问题，从而提高了预测性能。

衍生相关工作

EllipBench数据集的构建和应用，衍生了许多相关的研究工作。例如，一些研究者利用EllipBench数据集训练和评估了他们的机器学习模型，以解决椭偏光谱学建模问题。此外，EllipBench数据集的构建和应用，还为其他材料科学和物理学领域的研究提供了重要的参考和启示，推动了相关领域的研究进展。
