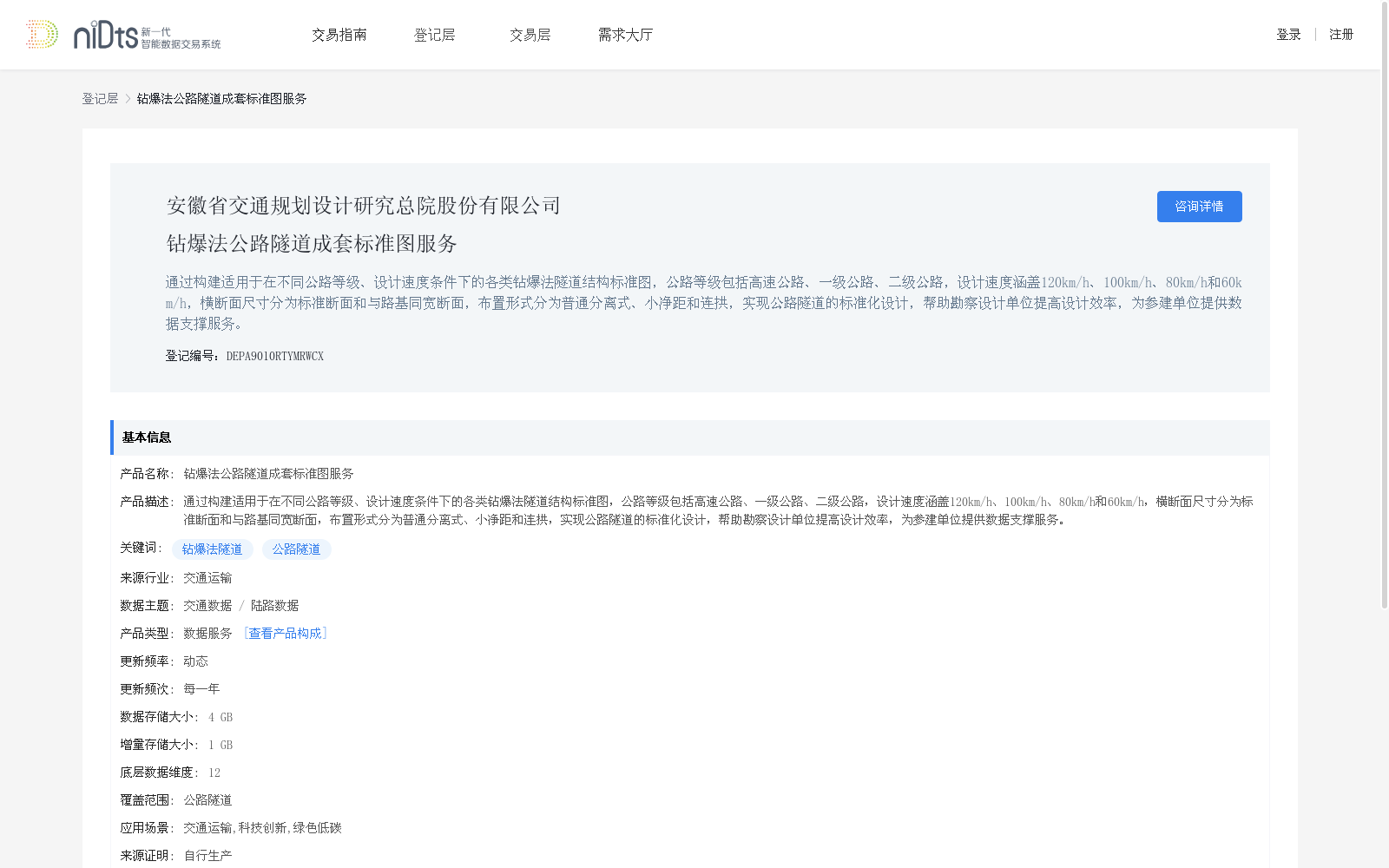

钻爆法公路隧道成套标准图服务

通过构建适用于在不同公路等级、设计速度条件下的各类钻爆法隧道结构标准图，公路等级包括高速公路、一级公路、二级公路，设计速度涵盖120km/h、100km/h、80km/h和60km/h，横断面尺寸分为标准断面和与路基同宽断面，布置形式分为普通分离式、小净距和连拱，实现公路隧道的标准化设计，帮助勘察设计单位提高设计效率，为参建单位提供数据支撑服务。

By developing standard drawings for various drill-and-blast tunnel structures applicable to different highway grades and design speeds—where highway grades include expressways, first-class highways and second-class highways, and design speeds cover 120km/h, 100km/h, 80km/h and 60km/h. The cross-sectional dimensions are categorized into standard sections and sections matching the width of the highway subgrade, while the layout forms are divided into three types: ordinary separated tunnels, small clear-distance tunnels and twin-arch tunnels. This work achieves standardized design of highway tunnels, enhances design efficiency for survey and design institutes, and offers data support services for all participating construction units.

搜集汇总

背景与挑战

背景概述

该数据集提供了适用于不同公路等级和设计速度条件下的钻爆法隧道结构标准图，涵盖高速公路、一级公路和二级公路，设计速度从60km/h到120km/h不等。数据集旨在实现公路隧道的标准化设计，提高设计效率，并为参建单位提供数据支撑服务。
