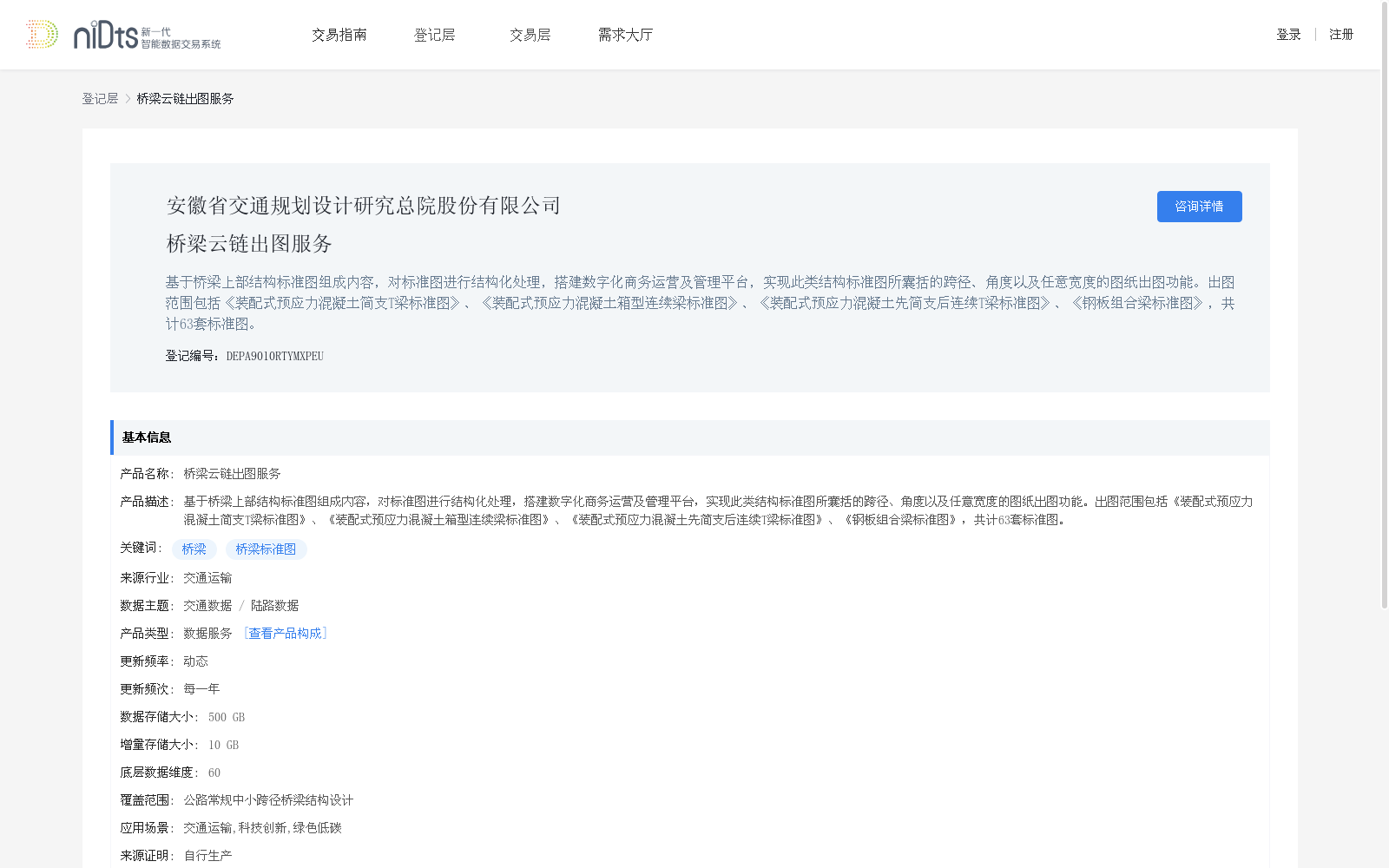

桥梁云链出图服务

基于桥梁上部结构标准图组成内容，对标准图进行结构化处理，搭建数字化商务运营及管理平台，实现此类结构标准图所囊括的跨径、角度以及任意宽度的图纸出图功能。出图范围包括《装配式预应力混凝土简支T梁标准图》、《装配式预应力混凝土箱型连续梁标准图》、《装配式预应力混凝土先简支后连续T梁标准图》、《钢板组合梁标准图》，共计63套标准图。

Based on the constituent contents of standard drawings for bridge superstructures, structured processing was performed on these standard drawings, and a digital business operation and management platform was built. This platform enables drawing generation for arbitrary spans, angles and widths covered by such structural standard drawings. The scope of drawing generation includes Prefabricated Prestressed Concrete Simply-Supported T-Beam Standard Drawings, Prefabricated Prestressed Concrete Box Continuous Beam Standard Drawings, Prefabricated Prestressed Concrete Simply-Supported-to-Continuous T-Beam Standard Drawings, and Steel Plate Composite Beam Standard Drawings, totaling 63 sets of standard drawings.

搜集汇总

背景与挑战

背景概述

桥梁云链出图服务是一个基于桥梁上部结构标准图的数据服务，提供数字化商务运营及管理平台，实现跨径、角度和任意宽度的图纸出图功能。该服务覆盖公路常规中小跨径桥梁结构设计，适用于交通运输、科技创新和绿色低碳等应用场景。
