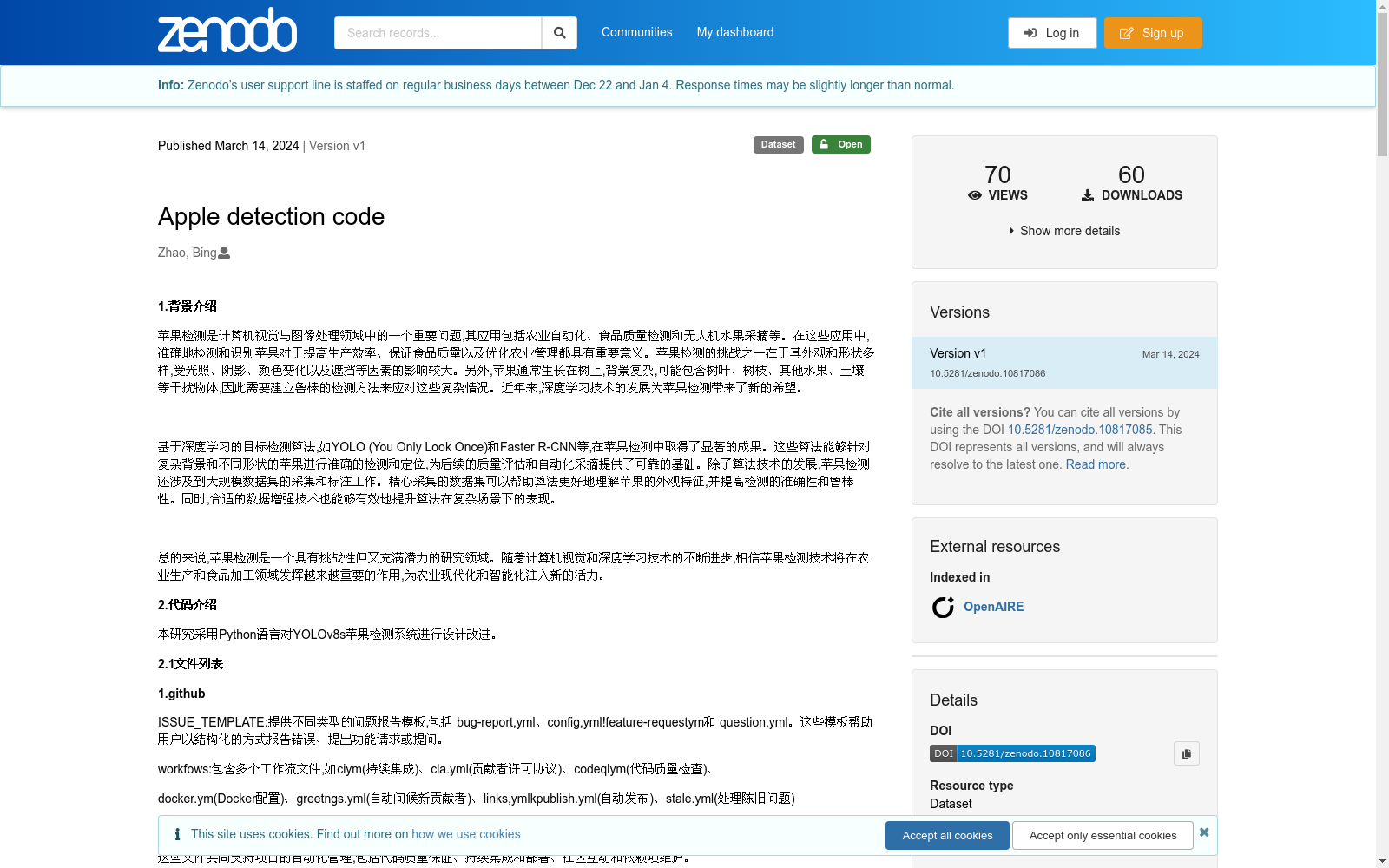

Apple detection code

1.背景介绍 苹果检测是计算机视觉与图像处理领域中的一个重要问题,其应用包括农业自动化、食品质量检测和无人机水果采摘等。在这些应用中,准确地检测和识别苹果对于提高生产效率、保证食品质量以及优化农业管理都具有重要意义。苹果检测的挑战之一在于其外观和形状多样,受光照、阴影、颜色变化以及遮挡等因素的影响较大。另外,苹果通常生长在树上,背景复杂,可能包含树叶、树枝、其他水果、土壤等干扰物体,因此需要建立鲁棒的检测方法来应对这些复杂情况。近年来,深度学习技术的发展为苹果检测带来了新的希望。 基于深度学习的目标检测算法,如YOLO (You Only Look Once)和Faster R-CNN等,在苹果检测中取得了显著的成果。这些算法能够针对复杂背景和不同形状的苹果进行准确的检测和定位,为后续的质量评估和自动化采摘提供了可靠的基础。除了算法技术的发展,苹果检测还涉及到大规模数据集的采集和标注工作。精心采集的数据集可以帮助算法更好地理解苹果的外观特征,并提高检测的准确性和鲁棒性。同时,合适的数据增强技术也能够有效地提升算法在复杂场景下的表现。 总的来说,苹果检测是一个具有挑战性但又充满潜力的研究领域。随着计算机视觉和深度学习技术的不断进步,相信苹果检测技术将在农业生产和食品加工领域发挥越来越重要的作用,为农业现代化和智能化注入新的活力。 2.代码介绍 本研究采用Python语言对YOLOv8s苹果检测系统进行设计改进。 2.1文件列表 1.github ISSUE_TEMPLATE:提供不同类型的问题报告模板,包括 bug-report,yml、config,yml!feature-requestym和 question.yml。这些模板帮助用户以结构化的方式报告错误、提出功能请求或提问。 workfows:包含多个工作流文件,如ciym(持续集成)、cla.yml(贡献者许可协议)、codeqlym(代码质量检查)、 docker.ym(Docker配置)、greetngs.yml(自动问候新贡献者)、links,ymlkpublish.yml(自动发布)、stale.yml(处理陈旧问题) dependabot:yml(自动依赖更新) 这些文件共同支持项目的自动化管理,包括代码质量保证、持续集成和部署、社区互动和依赖项维护。 2.docker Dockerfile:主要的Docker配置文件,用于构建项目的默认Docker镜像。 Dockerfile-arm64:针对ARM64架构的设备(如某些类型的服务器或高级嵌入式设备)定制的Docker配置, Dockerfile-conda:使用Conda包管理器配置环境的Docker配置文件: Dockerfile-cpu: 为不支持GPU加速的环境配置的Docker配置文件。 Dockerfile-jetson: 专为NVIDlA Jetson平台定制的Docker配置。 Dockerfile-python: 可能是针对纯Python环境的简化Docker配置 Dockerfile-runner 可能用于配置持续集成特续部署(CI/CD)运行环境的Docker配置, 这些配置文件是用来部署用的,用户可以根据自己的需要选择合适的环境来部署和运行项目 3.docs docs日录通常用于存放文档资料,包括多种语言的翻译。例如,此目录下有多个文件夹,每个文件夹代表一种语言(如en代表英语文档)。除此之外,还有几个重要的Python脚本和配置文件给大家说一下: build_docs.py:-个Python脚本,用于自动化构建和编译文档的过程,mkdocs.yml:MkDocs配置文件,用于指定文档网站的结构和设置。 以mkdocs_es.yml为例,这是用于构建西班牙语文档的MKDocs配置文件。类似的,mkdocs zh.yml用于构建中文文档。 4.examples YOLO8-CPP-nference:包含C++语言实现的YOLOV8推理示例,内有CMakeLists.bt(用于项目构建的CMake配置文件)inference.cpp和inferenceh(推理相关的源代码和头文件),main.cpp(主程序入口)以及README.md(使用说明) YOLOv8-0NNXRuntime:提供Pvthon语言与ONNXRunime结合使用的YOLOV8推理示例,其中main.py是主要的脚本文件README.md提供了如何使用该示例的指南。 YOLOY8-0NNXRuntime-CPP:与上述ONNXRuntime类似,但是是用C++编写的,包含了相应的CMakeLists bt,inference.cpp. inference.h和main.cpp文件,以及用于解释如何运行示例的README.md。 每个示例都配有相应的文档,是当我们进行模型部署的时候在不同环境中部署和使用YOLOv8的示例. 5.tests conftest.py:包含测试配置选项或共享的测试助手函数test_cli.py:用于测试命令行界面(CLI)的功能和行为。test_cuda.py:专门测试项目是否能正确使用NVIDIA的CUDA技术,确保GPU加速功能正常test_engine.py:测试底层推理引擎,如模型加载和数据处理等。test integrations.py:测试项目与其他服务或库的集成是否正常工作。test_python.py:用于测试项目的Python AP|接口是否按预期工作。 6.runs:训练结果 7.utralytics datasets文件夹:包含数据集的配置文件,如数据路径、类别信息等(就是我们训练YOLO模型的时候需要一个数据集,这里面就保存部分数据集的yaml文件,如果我们训练的时候没有指定数据集则会自动下载其中的数据集文件,但是很容易失败!)。models文件夹:存放模型配置文件,定义了模型结构和训练参数等,这个是我们改进或者就基础版本的一个yam文件配置的地方。 nodelsx件天中的每yamlz件代表了不同的YOLOv8模型配置,具体包括: yolov8.yaml:这是YOLOv8模型的标准配置文件,定义了模型的基础架构和参数。 yolov8-cls.yam!: 配置文件调整了YOLOv8模型,专门用于图像分类任务。 yolov8-ghost.yaml: 应用Ghost模块的YOLOv8变体,旨在提高计算效率:yolov8-ghost-p2.yaml和 yolov8-ghost-p6.yaml: 这些文件是针对特定大小输入的Ghost模型变体配置。yolov8-p2.yaml和 yolov8-p6.yam: 针对不同处理级别(例如不同的输入分辨率或模型深度)的YOLOv8模型配置 yolov8-pose.yaml: 为姿态估计任务定制的YOLOv8模型配置。 yolov8-pose-p6.yam!: 针对更大的输入分辨率或更复杂的模型架构姿态估计任务。 yolov8-rtdetr.yaml: 可能表示实时检测和跟踪的YOLOv8模型变体。 yolov8-seg.yaml和 yolov8-seg-p6.yaml: 这些是为语义分割任务定制的YOLOv8模型配置 trackers文件夹:用于追踪算法的配置。 init .py文件:表明`cfg是-个Python包。 default.yaml:项目的默认配置文件,包含了被多个模块共享的通用配置项。 8.data download weights.sh:用来下载预训练权重的脚本。get_coco.sh,get_coco128.sh,get imagenet.sh:用于下载COCO数据集完整版、128张图片版以及lmageNet数据集的脚本 在data文件夹中,包括: annotator.py:用于数据注释的工具。 augment.py: 数据增强相关的函数或工具。base.py,build.py,converter.py: 包含数据处理的基础类或函数、构建数据集的脚本以及数据格式转换工具 dataset.py:数据集加载和处理的相关功能。 loaders.py: 定义加载数据的方法。 utils.py:各种数据处理相关的通用工具函数。 9.engine exporter.py:用于将训练好的模型导出到其他格式,例如ONNX或TensorRT。 model.py: 包含模型定义,还包括模型初始化和加载的方法。 predictor.py:包含推理和预测的逻辑,如加载模型并对输入数据进行预测。 results.py:用于存储和处理模型输出的结果。 trainer.py:包含模型训练过程的逻辑。 tuner.py: 用于模型超参数调优。 validator.py: 包含模型验证的逻辑,如在验证集上评估模型性能。 10.models classify:这个目录可能包含用于图像分类的YOLO模型。 detect: 包含用于物体检测的YOLO模型 pose:包含用于姿态估计任务的YOLO模型 segment: 包含用于图像分割的YOLO模型 11.nn modules双件夹: init .py: 表明此目录是Python包。 block.py: 包含定义神经网络中的基础块,如残差块或瓶颈块。 conv.py: 包含 卷积层Q 相关的实现。 head.py: 定义网络的头部,用于预测。 transformer.py:包含Transformer模型相关的实现 utils.py: 提供构建神经网络时可能用到的辅助函数, init .py:同样标记这个目录为Python包 autobackend.py: 用于自动选择最优的计算后端, tasks,py,定义了使用神经网络完,成的不同任务的流程,例如分类、检测或分割,所有的流程基本上都定义在这里,定义模型前向传播都在这里。 12.solutions init_.py: 标识这是-个Python包。 ai_gym.py:与强化学习相关,例如在OpenAlGym环境中训练模型的代码,heatmap.py:用于生成和处理热图数据,这在物体检测和事件定位中很常见。object counter.py: 用于物体计数的脚本,包含从图像中检测和计数实例的逻辑。 13.utils callbacks.py:包含在训练过程中被调用的回调函数。autobatch.py:用于实现批处理优化,以提高训练或推理的效率:benchmarks.py: 包含性能基准测试相关的函数.checks.py 用于项目中的各种检查,如参数验证或环境检查。dist.py:涉及分布式计算相关的工具 downloads.py:包含下载数据或模型等资源的脚本,errors.py:定义错误处理相关的类和函数, fles.py: 包含文件操作相关的工具函数。 instance.py: 包含实例化对象或模型的工具, loss.py: 定义损失函数, metrics.py: 包含评估模型性能的指标计算函数。 ops.py: 包含自定义操作,如特殊的数学运算或数据转换patches.py:用于实现修改或补丁应用的工具plotting.py: 包含数据可视化相关的绘图工具。 tal.py:一些损失函数的功能应用 torch utils.py:提供PyTorch相关的工具和辅助函数,包括GFLOPs的计算triton.py: 可能与NVIDlA Triton Inference Server集成相关tuner.py: 包含模型或算法调优相关的工具。 3.模型模型 本研究模型主要在YOLOv8s主干,颈部和检测头部分进行改进,将MobileNetV3替换原始主干网络,MobileNetV31.结合了硬件感知的网络架构搜索(NAS)和NetAdapt算法,针对移动设备CPU进行优化,引入了新颖的架构设计,包括反转残差结构和线性瓶颈层。提出了高效的Lite Reduced Atrous $patial Pyramid Pooling(LR-ASPP)作为新的分割解码。 在颈部部分引入BiFF双向金字塔网络,BiFF有高效的双向跨尺度连接:BIFPN通过在自顶向下和自底向上路径之间建立双向连接,允许不同尺度特征间的信息更有效地流动和融合。简化的网络结构:BIFPN通过删除只有一个输入边的节点、在同一层级的输入和输出节点间添加额外边,以及将每个双向路径视为-特征网络层并重复多次,来优化跨尺度连接。加权特征融合:BIFPN引入了可学习的权重来确定不同输入特征的重要性,从而提高了特征融合的效果。 在检测头部分引入ASFF思想:自适应空间特征融合:提出了一种新的金字塔特征融合策略,能够空间过滤,中突信息,压制不同尺度特征间的不一致性。改善尺度不变性:通过ASFF策略,显著提升了特征的尺度不变性,有助于提高对象检测的准确性。低推理开销:在提升检测性能的同时,几乎不增加额外的推理开销。

1. Background Introduction
Apple detection is an important problem in the field of computer vision and image processing, with applications including agricultural automation, food quality inspection, and unmanned aerial vehicle (UAV) fruit picking. In these applications, accurately detecting and identifying apples is of great significance for improving production efficiency, ensuring food quality, and optimizing agricultural management.
One of the challenges in apple detection lies in its diverse appearances and shapes, and it is highly susceptible to factors such as lighting, shadows, color variations, and occlusion. In addition, apples usually grow on trees with complex backgrounds that may include interfering objects such as leaves, branches, other fruits, and soil, so robust detection methods need to be established to handle these complex situations. In recent years, the development of deep learning technology has brought new hope for apple detection.
Deep learning-based object detection algorithms, such as YOLO (You Only Look Once) and Faster R-CNN, have achieved remarkable results in apple detection. These algorithms can accurately detect and locate apples with complex backgrounds and different shapes, providing a reliable basis for subsequent quality assessment and automated picking. In addition to the development of algorithmic technologies, apple detection also involves the collection and annotation of large-scale datasets. Carefully collected datasets can help algorithms better understand the appearance characteristics of apples and improve the accuracy and robustness of detection. At the same time, appropriate data augmentation techniques can effectively improve the performance of algorithms in complex scenarios.
Overall, apple detection is a challenging but promising research field. With the continuous advancement of computer vision and deep learning technologies, it is believed that apple detection technology will play an increasingly important role in agricultural production and food processing, injecting new vitality into agricultural modernization and intelligence.

2. Code Introduction
This study adopts the Python programming language to design and improve the YOLOv8s-based apple detection system.

2.1 File List
1. `.github/ISSUE_TEMPLATE`: Provides templates for reporting different types of issues, including `bug-report.yml`, `config.yml`, `feature-request.yml`, and `question.yml`. These templates enable users to report bugs, submit feature requests, or ask questions in a structured manner.
`.github/workflows`: Contains multiple workflow files, such as `ci.yml` (continuous integration), `cla.yml` (Contributor License Agreement), `codeql.yml` (code quality inspection), `docker.yml` (Docker configuration), `greetings.yml` (automated greeting for new contributors), `links.yml`, `publish.yml` (automated release), `stale.yml` (handling stale issues), and `dependabot.yml` (automated dependency updates). These files collectively support automated project management, including code quality assurance, continuous integration and deployment, community engagement, and dependency maintenance.

2. `docker`:
- `Dockerfile`: The primary Docker configuration file for building the project's default Docker image.
- `Dockerfile-arm64`: Custom Docker configuration for ARM64 architecture devices (e.g., certain server types or advanced embedded devices).
- `Dockerfile-conda`: Docker configuration file for setting up environments using the Conda package manager.
- `Dockerfile-cpu`: Docker configuration for environments that do not support GPU acceleration.
- `Dockerfile-jetson`: Custom Docker configuration specifically for the NVIDIA Jetson platform.
- `Dockerfile-python`: A simplified Docker configuration intended for pure Python environments.
- `Dockerfile-runner`: Docker configuration for setting up CI/CD runner environments.
These configuration files are used for deployment, and users can select the appropriate environment based on their needs to deploy and run the project.

3. `docs`: This directory is typically used to store documentation materials, including translations in multiple languages. For example, this directory contains multiple folders, each representing a language (e.g., `en` for English documentation). Additionally, several important Python scripts and configuration files are worth noting:
- `build_docs.py`: A Python script for automating the documentation building and compilation process.
- `mkdocs.yml`: The MkDocs configuration file for specifying the structure and settings of the documentation website.
- Take `mkdocs_es.yml` as an example: this is the MkDocs configuration file for building Spanish documentation. Similarly, `mkdocs_zh.yml` is used for building Chinese documentation.

4. `examples`:
- `YOLOv8-CPP-Inference`: Contains C++ implementations of YOLOv8 inference examples, including `CMakeLists.txt` (CMake configuration file for project building), `inference.cpp` and `inference.h` (source and header files for inference-related logic), `main.cpp` (main program entry), and `README.md` (usage instructions).
- `YOLOv8-ONNXRuntime`: Provides YOLOv8 inference examples combining Python and ONNX Runtime, where `main.py` is the primary script file, and `README.md` offers guidance on how to use the example.
- `YOLOv8-ONNXRuntime-CPP`: Similar to the aforementioned ONNXRuntime example, but implemented in C++, including corresponding `CMakeLists.txt`, `inference.cpp`, `inference.h`, and `main.cpp` files, as well as `README.md` explaining how to run the example.
Each example is accompanied by corresponding documentation, serving as references for deploying and using YOLOv8 in different environments during model deployment.

5. `tests`:
- `conftest.py`: Contains test configuration options or shared test helper functions.
- `test_cli.py`: Used to test the functionality and behavior of the command-line interface (CLI).
- `test_cuda.py`: Specializes in testing whether the project can correctly utilize NVIDIA CUDA technology to ensure normal GPU acceleration functionality.
- `test_engine.py`: Tests underlying inference engines, such as model loading and data processing.
- `test_integrations.py`: Tests whether the project integrates properly with other services or libraries.
- `test_python.py`: Used to test whether the project's Python API functions as expected.

6. `runs`: Training results.

7. `ultralytics`:
- `datasets`: Contains dataset configuration files, such as data paths and category information (when training YOLO models, a dataset is required, and this directory stores partial dataset YAML files. If no dataset is specified during training, the project will automatically download the dataset files from here, but this often fails!).
- `models`: Stores model configuration files that define model structures and training parameters, which is where we configure either improved or baseline versions of the models. Each YAML file in this directory represents a different YOLOv8 model configuration, including:
- `yolov8.yaml`: The standard configuration file for YOLOv8 models, defining the model's basic architecture and parameters.
- `yolov8-cls.yaml`: A configuration file adjusted for YOLOv8 models specifically for image classification tasks.
- `yolov8-ghost.yaml`: A YOLOv8 variant applying the Ghost module to improve computational efficiency.
- `yolov8-ghost-p2.yaml` and `yolov8-ghost-p6.yaml`: These are configurations for Ghost model variants tailored for specific input sizes.
- `yolov8-p2.yaml` and `yolov8-p6.yaml`: YOLOv8 model configurations for different processing levels (e.g., varying input resolutions or model depths).
- `yolov8-pose.yaml`: A YOLOv8 model configuration customized for pose estimation tasks.
- `yolov8-pose-p6.yaml`: A configuration for pose estimation tasks with larger input resolutions or more complex model architectures.
- `yolov8-rtdetr.yaml`: A YOLOv8 model variant likely intended for real-time detection and tracking.
- `yolov8-seg.yaml` and `yolov8-seg-p6.yaml`: These are YOLOv8 model configurations customized for semantic segmentation tasks.
- `trackers`: Used for tracking algorithm configurations.
- `__init__.py`: Indicates that `cfg` is a Python package.
- `default.yaml`: The project's default configuration file, containing general configuration items shared across multiple modules.

8. `data`:
- `download_weights.sh`: A script for downloading pre-trained weights.
- `get_coco.sh`, `get_coco128.sh`, `get_imagenet.sh`: Scripts for downloading the full COCO dataset, the 128-image COCO subset, and the ImageNet dataset, respectively.
Other contents in the `data` directory include:
- `annotator.py`: A tool for data annotation.
- `augment.py`: Functions or tools related to data augmentation.
- `base.py`, `build.py`, `converter.py`: Contain basic data processing classes/functions, dataset building scripts, and data format conversion tools.
- `dataset.py`: Relevant functions for dataset loading and processing.
- `loaders.py`: Defines methods for loading data.
- `utils.py`: Various general utility functions related to data processing.

9. `engine`:
- `exporter.py`: Used for exporting trained models to other formats, such as ONNX or TensorRT.
- `model.py`: Contains model definitions, as well as methods for model initialization and loading.
- `predictor.py`: Contains inference and prediction logic, such as loading models and performing predictions on input data.
- `results.py`: Used for storing and processing model output results.
- `trainer.py`: Contains the logic for the model training process.
- `tuner.py`: Used for model hyperparameter tuning.
- `validator.py`: Contains model validation logic, such as evaluating model performance on the validation set.

10. `models`:
- `classify`: This directory may contain YOLO models for image classification tasks.
- `detect`: Contains YOLO models for object detection tasks.
- `pose`: Contains YOLO models for pose estimation tasks.
- `segment`: Contains YOLO models for image segmentation tasks.

11. `nn`:
- `__init__.py`: Indicates that this directory is a Python package.
- `block.py`: Contains definitions of basic neural network blocks, such as residual blocks or bottleneck blocks.
- `conv.py`: Contains implementations related to convolutional layers.
- `head.py`: Defines the network head used for prediction.
- `transformer.py`: Contains implementations related to Transformer models.
- `utils.py`: Provides auxiliary functions that may be used when building neural networks.
- `__init__.py`: Also marks this directory as a Python package.
- `autobackend.py`: Used for automatically selecting the optimal computing backend.
- `tasks.py`: Defines the workflows for different tasks completed using neural networks, such as classification, detection, or segmentation. Almost all workflows, including model forward propagation, are defined here.

12. `solutions`:
- `__init__.py`: Identifies this as a Python package.
- `ai_gym.py`: Related to reinforcement learning, such as code for training models in the OpenAI Gym environment.
- `heatmap.py`: Used for generating and processing heatmap data, which is common in object detection and event localization.
- `object_counter.py`: A script for object counting, containing logic for detecting and counting instances from images.

13. `utils`:
- `callbacks.py`: Contains callback functions invoked during the training process.
- `autobatch.py`: Used to implement batch optimization to improve training or inference efficiency.
- `benchmarks.py`: Contains functions related to performance benchmarking.
- `checks.py`: Used for various checks in the project, such as parameter validation or environment checks.
- `dist.py`: Involves tools related to distributed computing.
- `downloads.py`: Contains scripts for downloading resources such as data or models.
- `errors.py`: Defines classes and functions related to error handling.
- `files.py`: Contains utility functions related to file operations.
- `instance.py`: Contains tools for instantiating objects or models.
- `loss.py`: Defines loss functions.
- `metrics.py`: Contains functions for calculating metrics to evaluate model performance.
- `ops.py`: Contains custom operations, such as special mathematical operations or data conversions.
- `patches.py`: A tool for implementing modifications or patch applications.
- `plotting.py`: Contains plotting tools related to data visualization.
- `tal.py`: Applies functions for some loss functions.
- `torch_utils.py`: Provides PyTorch-related tools and auxiliary functions, including GFLOPs calculation.
- `triton.py`: Potentially related to integration with the NVIDIA Triton Inference Server.
- `tuner.py`: Contains tools related to model or algorithm tuning.

3. Model Improvement
The model in this study is mainly improved in the backbone, neck, and detection head parts of YOLOv8s:
1. Backbone: Replace the original backbone network with MobileNetV3. MobileNetV3 combines hardware-aware neural architecture search (NAS) and the NetAdapt algorithm, is optimized for mobile device CPUs, and introduces novel architectural designs including inverted residual structures and linear bottleneck layers. We propose an efficient Lite Reduced Atrous Spatial Pyramid Pooling (LR-ASPP) as a new segmentation decoder.
2. Neck: Introduce the Bidirectional Feature Pyramid Network (BiFPN). BiFPN features efficient bidirectional cross-scale connections: it establishes bidirectional connections between top-down and bottom-up paths, allowing information to flow and fuse more effectively across different scale features. Simplified network structure: BiFPN optimizes cross-scale connections by removing nodes with only one input edge, adding additional edges between input and output nodes at the same level, and treating each bidirectional path as a feature network layer repeated multiple times. Weighted feature fusion: BiFPN introduces learnable weights to determine the importance of different input features, thereby improving the effect of feature fusion.
3. Detection Head: Introduce the Adaptive Spatial Feature Fusion (ASFF) concept. We propose a new pyramid feature fusion strategy that can spatially filter conflicting information and suppress inconsistencies between features of different scales. Improved scale invariance: The ASFF strategy significantly enhances the scale invariance of features, helping to improve object detection accuracy. Low inference overhead: While improving detection performance, it barely adds additional inference overhead.
