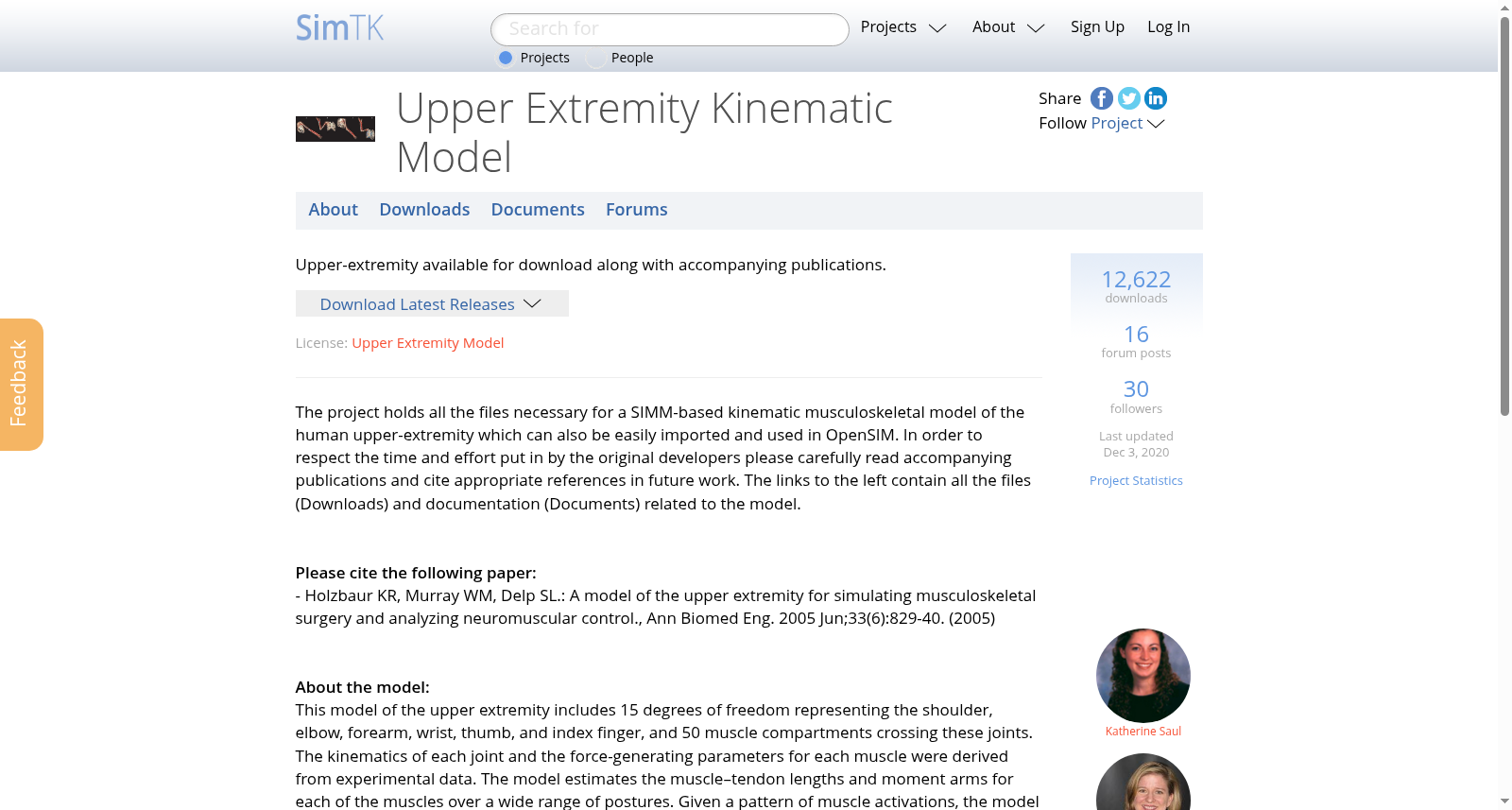

Upper Extremity Kinematic Model

The project holds all the files necessary for a SIMM-based kinematic musculoskeletal model of the human upper-extremity which can also be easily imported and used in OpenSIM. In order to respect the time and effort put in by the original developers please carefully read accompanying publications and cite appropriate references in future work. The links to the left contain all the files (Downloads) and documentation (Documents) related to the model.<hr> </hr><b>Please cite the following paper:</b>-Holzbaur KR, Murray WM, Delp SL.: A model of the upper extremity for simulating musculoskeletal surgery and analyzing neuromuscular control., Ann Biomed Eng. 2005 Jun;33(6):829-40. (2005)<hr> </hr><b>About the model:</b>This model of the upper extremity includes 15 degrees of freedom representing the shoulder, elbow, forearm, wrist, thumb, and index finger, and 50 muscle compartments crossing these joints. The kinematics of each joint and the force-generating parameters for each muscle were derived from experimental data. The model estimates the muscle–tendon lengths and moment arms for each of the muscles over a wide range of postures. Given a pattern of muscle activations, the model also estimates muscle forces and joint moments. The moment arms and maximum moment generating capacity of each muscle group (e.g., elbow flexors) were compared to experimental data to assess the accuracy of the model. These comparisons showed that moment arms and joint moments estimated using the model captured important features of upper extremity geometry and mechanics. The model also revealed coupling between joints, such as increased passive finger flexion moment with wrist extension.<hr> </hr> <br/><br/>This project includes the following software/data packages: <br/> <ul> <li> <a href="https://simtk.org/frs?group_id=324#pack_494">Upper Extremity Model </a> : SIMM model of the human upper-extremity. </li> </ul>

本项目汇集了构建基于SIMM的人体上肢运动学肌肉骨骼模型所需的所有文件，此模型可轻松导入至OpenSIM中使用。为尊重原始开发者的辛勤付出，请仔细阅读随附的出版物，并在后续工作中引用适当的参考文献。左侧链接包含与该模型相关的所有文件（下载）和文档（文档）。

请引用以下论文：

-Holzbaur KR, Murray WM, Delp SL.: 上肢模型：用于模拟肌肉骨骼手术和分析神经肌肉控制的模型，生物医学工程年刊。2005年6月；33(6):829-40. (2005)

关于模型：
本上肢模型包括代表肩部、肘部、前臂、腕部、拇指和食指的15个自由度，以及跨越这些关节的50个肌肉腔室。每个关节的运动学和每个肌肉的力生成参数均源自实验数据。模型估算肌肉-肌腱长度和各肌肉的力矩臂在广泛姿势范围内的变化。给定一组肌肉激活模式，模型还能估算肌肉力量和关节力矩。每个肌肉组的力矩臂和最大力矩生成能力（例如，肘部屈肌）与实验数据进行比较，以评估模型的准确性。这些比较表明，使用模型估算的力矩臂和关节力矩能够捕捉上肢几何和力学的重要特征。此外，模型还揭示了关节间的耦合关系，例如，随着腕部的伸展，被动手指屈曲力矩的增加。

本项目包括以下软件/数据包：

<ul>
<li><a href="https://simtk.org/frs?group_id=324#pack_494">上肢模型</a>：人类上肢的SIMM模型。</li>
</ul>

搜集汇总

背景与挑战

背景概述

该数据集是一个基于SIMM的人类上肢运动学肌肉骨骼模型，可导入OpenSim使用，包含15个自由度和50个肌肉隔室，用于模拟手术和分析神经肌肉控制。模型基于实验数据，能估计肌肉-肌腱长度、力矩臂等生物力学参数，并已通过实验验证其准确性。
