<div align="center">
<h1>MMFineReason</h1>
<p><strong>Closing the Multimodal Reasoning Gap via Open Data-Centric Methods</strong></p>
</div>

<div align="center">

[](https://arxiv.org/abs/2601.21821)
[](https://mmfinereason.github.io/)
[](https://huggingface.co/collections/OpenDataArena/mmfinereason)

</div>

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/model_compare.png" width="100%" alt="Model Performance Comparison">

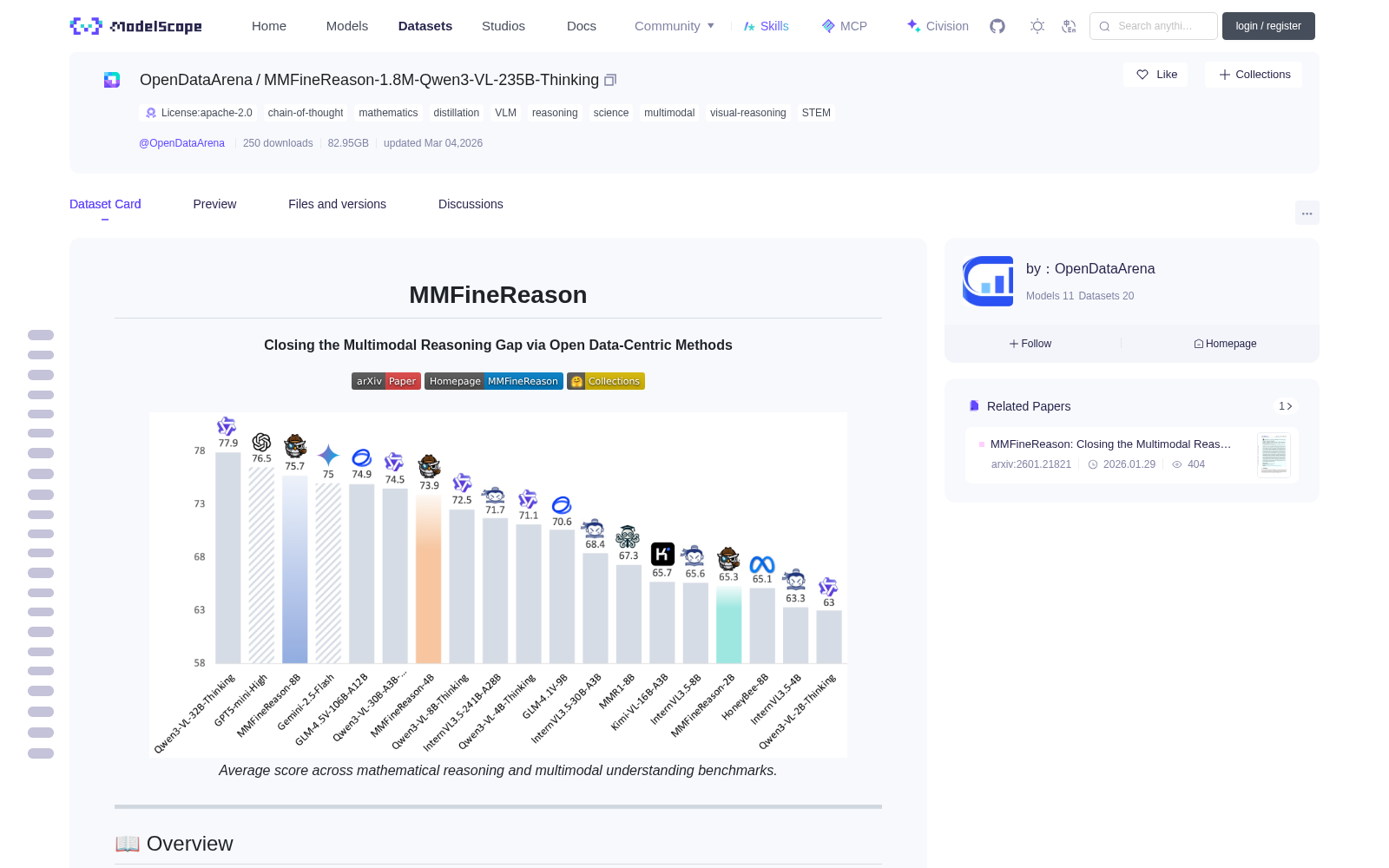

<figcaption><em>Average score across mathematical reasoning and multimodal understanding benchmarks.</em></figcaption>
</figure>

---

## 📖 Overview

**MMFineReason** is a large-scale, high-quality multimodal reasoning dataset comprising **1.8M samples** and **5.1B solution tokens**, featuring detailed reasoning annotations distilled from **Qwen3-VL-235B-A22B-Thinking**.

### 🎯 Key Highlights

- **1.8M High-Quality Samples** with **5.1B Solution Tokens**
- **Long-Form CoT**: Average reasoning length of **2,910 tokens** (2.7× HoneyBee, 4.3× OpenMMReasoner)
- **100% Caption Coverage**: Dense visual descriptions averaging 609 tokens
- **Multi-Domain**: Mathematics (79.4%), Science (13.8%), Puzzle/Game (4.6%), General/OCR (2.2%)
- **State-of-the-Art**: Models trained on this dataset achieve SOTA performance in their size class

---

## 🏗️ Data Construction Pipeline

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/pipeline_detailed.png" width="100%" alt="Data Construction Pipeline">
<figcaption><em>MMFineReason data pipeline and the two-stage training.</em></figcaption>
</figure>

### Stage 1: Data Collection & Standardization

- Aggregate diverse multimodal datasets from open-source community
- Translate non-English questions; remove noise and extraneous artifacts
- Rewrite shallow prompts into reasoning-encouraging instructions
- Filter non-reasoning tasks; clean corrupted/oversized images

### Stage 2: Reasoning Distillation

- **Teacher Model**: Qwen3-VL-235B-A22B-Thinking
- **Four-Phase Framework**: Information Extraction → Problem Setup → Solution Execution → Validation
- **Output**: Reasoning in `<think>...</think>`, final answer in `<answer>...</answer>`
- **Caption Generation**: 100% coverage via Qwen3-VL-235B-A22B-Thinking

### Stage 3: Data Selection

- **Quality Filtering**: Template/length validation, n-gram deduplication, correctness verification (~20% removed)
- **Difficulty Filtering**: Use Qwen3-VL-4B-Thinking pass rate as proxy
- **MMFineReason-123K**: Pass rate = 0 (hardest 7%)
- **MMFineReason-586K**: Pass rate ≠ 1 (challenging 33%)

---

## 🔧 Data Schema

| Field | Description |
|-------|-------------|
| `source` | Origin dataset name (e.g., "Geometry3K", "MMR1", "BMMR") |
| `id` | Unique sample identifier within the source dataset |
| `original_question` | Raw question text as obtained from the source |
| `original_answer` | Raw answer as obtained from the source |
| `image` | Visual input (PIL Image) |
| `question` | Cleaned, standardized question in English |
| `answer` | Verified answer extracted and standardized |
| `qwen3vl_235b_instruct_caption` | Dense visual description generated by Qwen3-VL-235B-A22B-Instruct |
| `qwen3vl_235b_thinking_response` | Long-form Chain-of-Thought reasoning generated by Qwen3-VL-235B-A22B-Thinking |
| `qwen3vl_4b_pass_rate` | Difficulty proxy based on Qwen3-VL-4B-Thinking's performance (0.0 = hardest, 1.0 = easiest) |
| `is_consistent` | Boolean indicating whether generated reasoning matches ground truth |
| `consistency_analysis` | Detailed analysis of consistency verification |

---

## 🗂️ Dataset Composition

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/composition_sunburst.png" width="100%" alt="Dataset Composition">
<figcaption><em>Dataset composition of MMFineReason-1.8M.</em></figcaption>
</figure>

**Mathematics (79.4%)** forms the backbone, primarily sourced from MMR1 (1.27M) and enriched with WaltonColdStart, ViRL39K, Euclid30K, MMK12, Geo170K, Geo3K, mm-openr1, and the WeMath family.

**Science (13.8%)** is anchored by VisualWebInstruct (157.3K) and BMMR (54.6K), complemented by TQA, AI2D, Zebra-CoT, and ScienceQA.

**Puzzle/Game (4.6%)** targets strategic planning and abstract reasoning, dominated by GameQA-140K (71.7K) and enriched by Raven, VisualSphinx, and PuzzleQA.

**General/OCR (2.2%)** includes 38.7K samples from LLaVA-CoT, serving as regularization to preserve broad visual and OCR capabilities.

---

## 📊 Dataset Statistics

### Token Length Comparison with Other Datasets

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/table_token_length.png" width="100%" alt="Token Length Statistics Comparison">
<figcaption><em>Comparison of token length statistics across datasets.</em></figcaption>
</figure>

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/token_length_distribution.png" width="100%" alt="Token Length Distribution">
<figcaption><em>Token length analysis. (Left) Internal domain distribution; (Mid) External CoT comparison; (Right) Caption richness comparison.</em></figcaption>
</figure>

MMFineReason achieves an average CoT length of **2,910 tokens**—approximately **2.7× longer** than HoneyBee and **4.3× longer** than OpenMMReasoner. The extended tail (Max: 16,316) demonstrates capacity for highly complex, multi-stage reasoning tasks. For captions, MMFineReason averages 609 tokens with **100% coverage**, compared to HoneyBee's 299 tokens at ~58% coverage.

---

### 🖼️ Image Category Distribution

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/table_image_category.png" width="100%" alt="Image Category Statistics">
<figcaption><em>Image category statistics by group (STEM vs. Natural).</em></figcaption>
</figure>

The corpus is predominantly STEM and diagrammatic content (98.3%), with geometric diagrams, mathematical plots, and logic puzzles accounting for 75.3%. Natural images (1.7%) provide diversity across urban scenes, indoor scenes, and human activities for generalization assessment.

---

### 📈 Difficulty Distribution

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/pass_rate_distribution.png" width="100%" alt="Pass Rate Distribution">
<figcaption><em>Pass rate distribution across sub-datasets, sorted by descending mean pass rate.</em></figcaption>
</figure>

Science-oriented datasets (ScienceQA, AI2D, TQA) exhibit high pass rates due to clean diagrams and MCQ format. Puzzle/game datasets (GameQA-140K, Raven, VisualSphinx) show lowest pass rates, requiring multi-step abstract reasoning. The binary distribution pattern reflects that reasoning tasks often follow all-or-nothing outcomes.

---

## 📊 Benchmark Results

### Main Results

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/table_main_results.png" width="100%" alt="Main Benchmark Results">
<figcaption><em>Comparison of MMFineReason models with state-of-the-art models.</em></figcaption>
</figure>

MMFineReason-4B surpasses Qwen3-VL-8B-Thinking (73.9 vs 72.5), while MMFineReason-8B outperforms the larger Qwen3-VL-30B-A3B-Thinking (75.7 vs 74.5) and exceeds Gemini-2.5-Flash. On mathematical benchmarks, MFR-8B achieves 83.4% on DynaMath (vs Qwen3-VL-32B-Thinking's 82.0%) and 67.1% on MathVision, outperforming HoneyBee-8B and OMR-7B by 23-30 points. Despite minimal chart training data, MFR-8B generalizes well to CharXiv (90.8%) and RealWorldQA (75.6%).

### SFT vs RL Training Analysis

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/table_sft_rl_results.png" width="100%" alt="SFT vs RL Results">
<figcaption><em>Results comparing MFR-SFT and MFR-Thinking models against base Qwen3-VL variants.</em></figcaption>
</figure>

SFT drives major gains in mathematical reasoning (e.g., MathVision: 53.9% → 67.6% for 8B). RL enhances generalization on understanding benchmarks (e.g., AI2D: 78.5% → 82.5% for 2B) while showing variance on math benchmarks.

---

## 🔬 Ablation Studies

### Data Efficiency ("Less is More")

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/ablation_data_efficiency.png" width="100%" alt="Data Efficiency Analysis">
<figcaption><em>Performance comparison across different data scales and model sizes.</em></figcaption>
</figure>

Removing 67% easy samples (Pass Rate = 1) improves performance by 0.6 points (75.0 → 75.6). Training on only the hardest 7% (123K samples) achieves 73.3—surpassing Qwen3-VL-8B-Thinking (72.5) with 14× less data. This demonstrates that challenging samples provide most training signal, and rigorous filtering eliminates redundancy in large-scale datasets.

### Sub-Dataset Performance

<figure align="center">
<img src="https://raw.githubusercontent.com/mmfinereason/mmfinereason.github.io/main/static/images/subdataset_performance.png" width="100%" alt="Sub-Dataset Performance Analysis">
<figcaption><em>Performance landscape of distilled sub-datasets (x-axis: sample count, log scale).</em></figcaption>
</figure>

ViRL39K (39K samples) retains 98.9% of MMR1's (1.5M) performance with only 2.4% data volume. WeMath2.0-SFT achieves 70.98% with just 814 samples, matching datasets 1000× larger. BMMR (80K, 300+ disciplines) outperforms the larger GameQA-140K (140K), showing that disciplinary diversity matters more than scale.

---

## 🏆 Trained Models

| Model | Parameters | Avg Score | HuggingFace |
|-------|------------|-----------|-------------|
| MMFineReason-2B | 2B | 65.3 | [🤗 Link](https://huggingface.co/OpenDataArena/MMFineReason-2B) |
| MMFineReason-4B | 4B | 73.9 | [🤗 Link](https://huggingface.co/OpenDataArena/MMFineReason-4B) |
| MMFineReason-8B | 8B | 75.7 | [🤗 Link](https://huggingface.co/OpenDataArena/MMFineReason-8B) |

---

## 📚 Citation

```bibtex
@misc{lin2026mmfinereasonclosingmultimodalreasoning,
title={MMFineReason: Closing the Multimodal Reasoning Gap via Open Data-Centric Methods},
author={Honglin Lin and Zheng Liu and Yun Zhu and Chonghan Qin and Juekai Lin and Xiaoran Shang and Conghui He and Wentao Zhang and Lijun Wu},
year={2026},
eprint={2601.21821},
archivePrefix={arXiv},
primaryClass={cs.CV},
url={https://arxiv.org/abs/2601.21821},
}
```

---

## 📄 License

This dataset is released under the [Apache 2.0 License](https://opensource.org/licenses/Apache-2.0). Individual source datasets may have their own licenses.

---

## 🤝 Acknowledgments

We thank the creators of FineVision, MMR1, BMMR, Euclid30K, GameQA-140K, LLaVA-CoT, WeMath, ViRL39K, and others. We also thank the Qwen team for the powerful Qwen3-VL series models.
