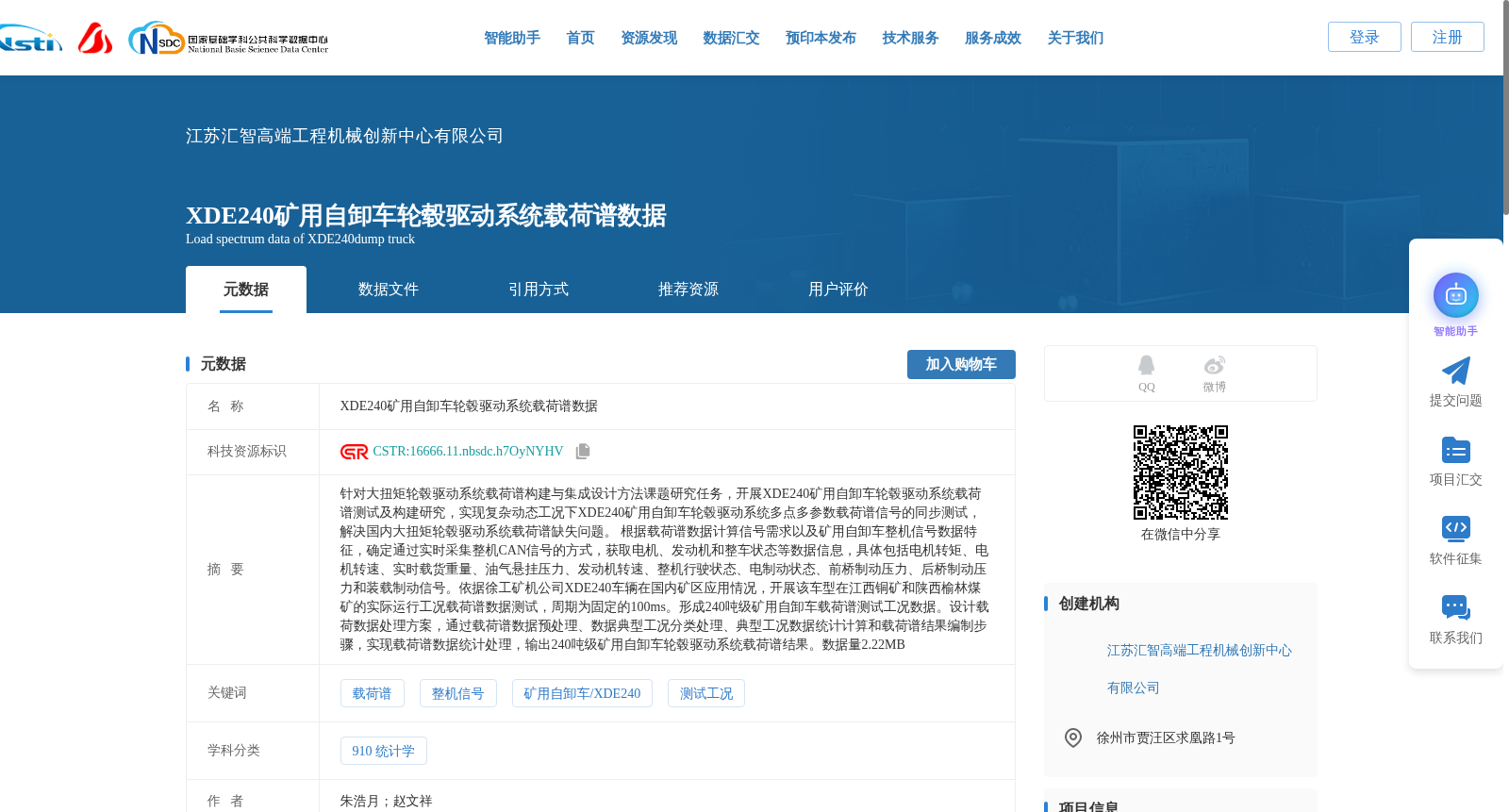

XDE240矿用自卸车轮毂驱动系统载荷谱数据

针对大扭矩轮毂驱动系统载荷谱构建与集成设计方法课题研究任务，开展XDE240矿用自卸车轮毂驱动系统载荷谱测试及构建研究，实现复杂动态工况下XDE240矿用自卸车轮毂驱动系统多点多参数载荷谱信号的同步测试，解决国内大扭矩轮毂驱动系统载荷谱缺失问题。
根据载荷谱数据计算信号需求以及矿用自卸车整机信号数据特征，确定通过实时采集整机CAN信号的方式，获取电机、发动机和整车状态等数据信息，具体包括电机转矩、电机转速、实时载货重量、油气悬挂压力、发动机转速、整机行驶状态、电制动状态、前桥制动压力、后桥制动压力和装载制动信号。依据徐工矿机公司XDE240车辆在国内矿区应用情况，开展该车型在江西铜矿和陕西榆林煤矿的实际运行工况载荷谱数据测试，周期为固定的100ms。形成240吨级矿用自卸车载荷谱测试工况数据。设计载荷数据处理方案，通过载荷谱数据预处理、数据典型工况分类处理、典型工况数据统计计算和载荷谱结果编制步骤，实现载荷谱数据统计处理，输出240吨级矿用自卸车轮毂驱动系统载荷谱结果。数据量2.22MB

This study targets the research task of load spectrum construction and integrated design method for high-torque hub drive systems. Research on load spectrum testing and construction of the XDE240 mining dump truck hub drive system was carried out to achieve synchronous testing of multi-point and multi-parameter load spectrum signals of the XDE240 mining dump truck hub drive system under complex dynamic working conditions, thereby solving the problem of missing load spectra for domestic high-torque hub drive systems.
Based on the signal demand calculated from load spectrum data and the characteristics of the overall signal data of mining dump trucks, the method of real-time collection of vehicle CAN signals was adopted to obtain data including motor, engine and vehicle state information, specifically motor torque, motor speed, real-time cargo weight, hydropneumatic suspension pressure, engine speed, vehicle running state, electric braking state, front axle braking pressure, rear axle braking pressure and loading braking signal.
According to the application status of XDE240 vehicles from XCMG Mining Machinery Co., Ltd. in domestic mining areas, load spectrum data testing under actual operating conditions of this model was conducted at Jiangxi Copper Mine and Yulin Coal Mine in Shaanxi Province, with a fixed sampling period of 100 ms. The load spectrum test working condition data of 240-ton class mining dump trucks were obtained.
A load data processing scheme was designed, and the statistical processing of load spectrum data was realized through the steps of load spectrum data preprocessing, typical working condition classification processing, statistical calculation of typical working condition data and compilation of load spectrum results, finally outputting the load spectrum results of the 240-ton class mining dump truck hub drive system. The total data volume is 2.22 MB.
